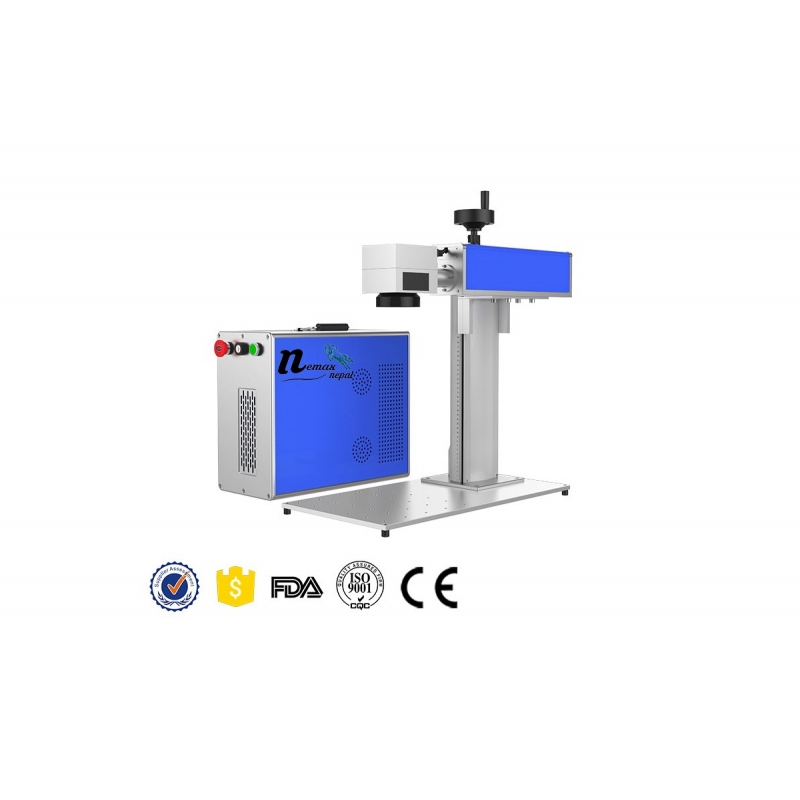

Fiber Laser Marking & Engraving Machine - 30W

Specification

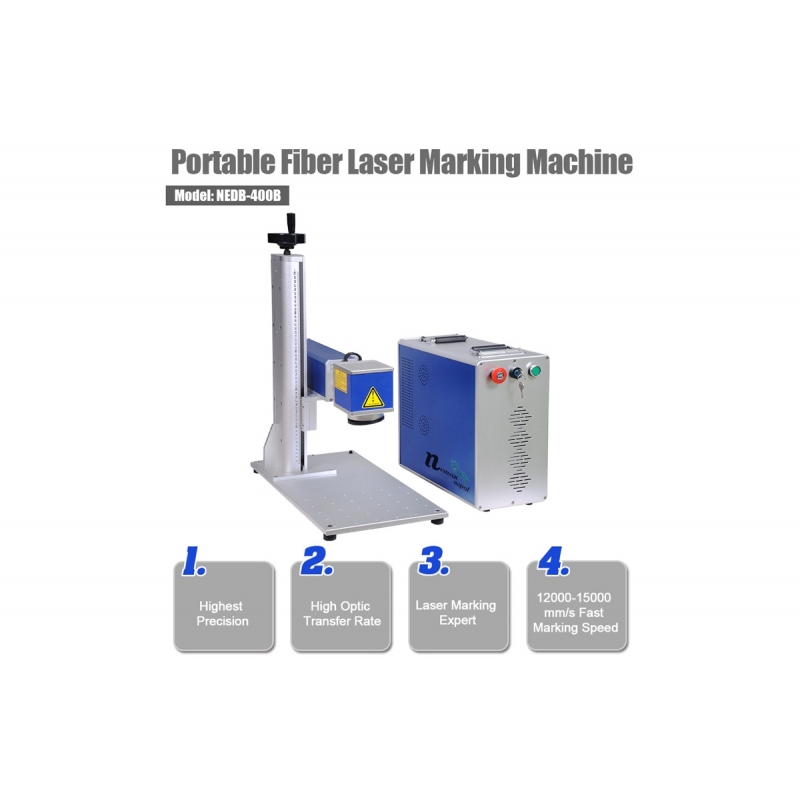

• Nemaxnepal is a prestigious supplier  of fiber laser engraving machines. This model is NEDB-400B metal laser marking machine adopts most advanced Germany technology. And the fiber lasers are of exceptional quality and can last up to 8-10 years without consumablesand any maintenance .
• If you have a high demand for fiber laser beams, then this fiber laser engraving machine will definitely be your choice.
• According to its many features, people also call it fiber laser engraving machine, metal laser engraving machine, metal laser marking machine, laser metal engraving machine, laser engraving machine metal.

High-quality imported fiber lasers: The metal laser marking machinehas exquisite marking effects, and all kinds of fine and complex patterns can be marked on the surface of the product with fiber laser marking system, which is suitable for all types of super-fine marking.

1. Optional multi-power laser light source: No matter what industry you belong to, no matter what material you use, this fiber laser engraving machine can customize the most suitable marking machine for your personality.
2. Fast marking and high efficiency: In the same time, the output of work pieces processed by the metal laser marking machine is obviously improved, and the return on investment of users is accelerated.
3. Long life: The metal laser marking machine can work continuously in harsh working environments, and the laser is free of maintenance for 100,000 hours.
4. High-efficiency photoelectric conversion rate: no loss of power coupling, no consumables, obviously reducing operating costs for customers.
5. Compact and compact: easy to handle and save production space.

Application

This metal laser marking machine is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Technical Data

Model NoNEDB-400A NEDB-400BNEDB-400CNEDB-400D

TypePortableDesktopColorfulStandby

ComputerNot includes PCIncludes PC

Laser Source

IPG SeriesPulsed, High Energy Ytterbium Fiber Lasers

Mode of operationPulsed

Polarizationrandom

Nominal average output power10W – 30W For NEDB-400A /400B /400C

10W – 50W For NEDB-400D

Central emission wavelength1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%

Emission Bandwidth

(FWHM)

<10 nm

Long-term average power instability<5%

Pulse width(FWHM)100 ns

Laser switching ON time180 μsec

Laser switching OFF time180 μsec

Pulse Repetition Rate* kHz20-80 kHz

Energy per pulse (PRR = 20 kHz)0.95 mJ

Typical beam quality, M2<1.8

Output fiber delivery length3m

Operating voltage220V

Max. Power consumption600W

Net Dimensions70*20*50cm80*38*72cm70*20*50cm143*62*101cm

Net Weight44 kgs53 kgs44 kgs130 kgs

Gross Weight60 kgs70 kgs60 kgs200 kgs

Laser system

Scanning Speed0-7000mm/s

Marking Speed0-5000mm/s

Marking size110mm×110mm (F-theta 160)

Spot size≤ 40 micron (F-theta 160)

Cooling unitAir cooled

Pilot laser650nm diode laser, visible red light for marking guide

Continuous working time≥16h

Humidity45～85% (no condensation)

Operating temperature0~40℃

Control unitsLaser Mark (English Version
